Fully waterproof outdoor design, highly reliable against rain.
Both LED modules and cabinets feature full IP65 ingress protection: fully dust-tight against fine particles and resistant to direct high-pressure water jets from all angles.
OUTDOOR LED DISPLAY · GLOBAL DELIVERY
Outdoor LED Screens – Built to withstand all weather, crystal clear even under bright sunlight
ARECH Outdoor LED Screens boast full IP65 weatherproof modules and cabinets. Max brightness: 6,000 nits with auto brightness sensor. Ultra-slim 75 mm deep cabinets, light-weight at 31 kg/m². Front-access design allows faulty module replacement in only 23 seconds.
- IP rating
- IP65
- Brightness
- Up to 6,000 nits
- Weight
- 31 kg/m²
- Depth
- 75 mm
Outdoor series
ANY SIZE of multiple times 250mm or 320mm
ARECH offers fully customizable LED screen dimensions based on modular units. All width and height measurements must be multiples of 250 mm or 320 mm to match our standard cabinet sizes. Flexible layout design meets diverse project demands for stadium, commercial outdoor, and arena display solutions.
WHY ARECH
Why ARECH for an Outdoor LED Screen Project
Engineered for Impact, Built to Last.
SPECIFICATIONS
Outdoor LED Screen Specifications
Complete outdoor series specification lineup. Select the model suited to your project and request its full PDF datasheet.
Outdoor LED Display 250mm series spec.
| Parameter | ACODP02.6FM | ACODP02.9 FM | ACODP03.9FM | ACODP04.8FM | ACODP05.9FM | ACODP06.2FM | ACODP07.8FM | ACODP10.4FM |
|---|---|---|---|---|---|---|---|---|
| Pixel Pitch | 2.6mm | 2.9mm | 3.9mm | 4.8mm | 5.9mm | 6.2mm | 7.8mm | 4.8mm |
| LED Type | SMD | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
| Module Dimension WxH | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
| Cabinet Dimension WxH | 1000x1000mm / 1000x750mm / 750x750mm / 500x500mm Optional | 1000x1000mm / 1000x750mm / 750x750mm / 500x500mm Optional | 1000x1000mm / 1000x750mm / 750x750mm / 500x500mm Optional | 1000x1000mm / 1000x750mm / 750x750mm / 500x500mm Optional | 1000x1000mm / 1000x750mm / 750x750mm / 500x500mm Optional | 1000x1000mm / 1000x750mm / 750x750mm / 500x500mm Optional | 1000x1000mm / 1000x750mm / 750x750mm / 500x500mm Optional | 1000x1000mm / 1000x750mm / 750x750mm / 500x500mm Optional |
| Cabinet Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Cabinet Weight | 31kg/sqm | 31kg/sqm | 31kg/sqm | 31kg/sqm | 31kg/sqm | 31kg/sqm | 31kg/sqm | 31kg/sqm |
| Service Type | Front | Front | Front | Front | Front | Front | Front | Front |
| Brightness | 6000nits | 6000nits | 6000nits | 6000nits | 6000nits | 6000nits | 6000nits | 6000nits |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Hor. Viewing Angle | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) |
| Vert. Viewing Angle | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) |
| Power Consumption | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) |
| Refresh Rate | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Operating Power Voltage | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz |
| Operating Temperature | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C |
| Operating Humidity | 10% to 90% | 10% to 90% | 10% to 90% | 10% to 90% | 10% to 90% | 10% to 90% | 10% to 90% | 10% to 90% |
| Standard | CE / FCC | CE / FCC | CE / FCC | CE / FCC | CE / FCC | CE / FCC | CE / FCC | CE / FCC |
| Warranty | 2 years | 2 years | 2 years | 2 years | 2 years | 2 years | 2 years | 2 years |
Outdoor LED Display 320mm series spec.
| Parameter | ACODP05.3FM | ACODP06.6FM | ACODP08.0FM | ACODP10.0FM | ACODP16.0FM |
|---|---|---|---|---|---|
| Pixel Pitch | 5.3mm | 6.6mm | 8.0mm | 10.0mm | 16mm |
| LED Type | SMD | SMD | SMD | SMD | SMD |
| Module Dimension WxH | 320x320mm | 320x320mm | 320x320mm | 320x320mm | 320x320mm |
| Cabinet Dimension WxH | 1280x960mm/ 960x960mm/ 960x640mm OptionalCabinet Material | 1280x960mm/ 960x960mm/ 960x640mm OptionalCabinet Material | 1280x960mm/ 960x960mm/ 960x640mm OptionalCabinet Material | 1280x960mm/ 960x960mm/ 960x640mm OptionalCabinet Material | 1280x960mm/ 960x960mm/ 960x640mm OptionalCabinet Material |
| Cabinet Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Cabinet Weight | 31kg/sqm | 31kg/sqm | 31kg/sqm | 31kg/sqm | 31kg/sqm |
| Service Type | Front | Front | Front | Front | Front |
| Brightness | 6000nits | 6000nits | 6000nits | 6000nits | 6000nits |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Hor. Viewing Angle | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) |
| Vert. Viewing Angle | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) |
| Power Consumption | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) |
| Refresh Rate | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Operating Power Voltage | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz |
| Operating Temperature | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C |
| Operating Humidity | 10% to 90% | 10% to 90% | 10% to 90% | 10% to 90% | 10% to 90% |
| Standard | CE / FCC | CE / FCC | CE / FCC | CE / FCC | CE / FCC |
| Warranty | 2 years | 2 years | 2 years | 2 years | 2 years |

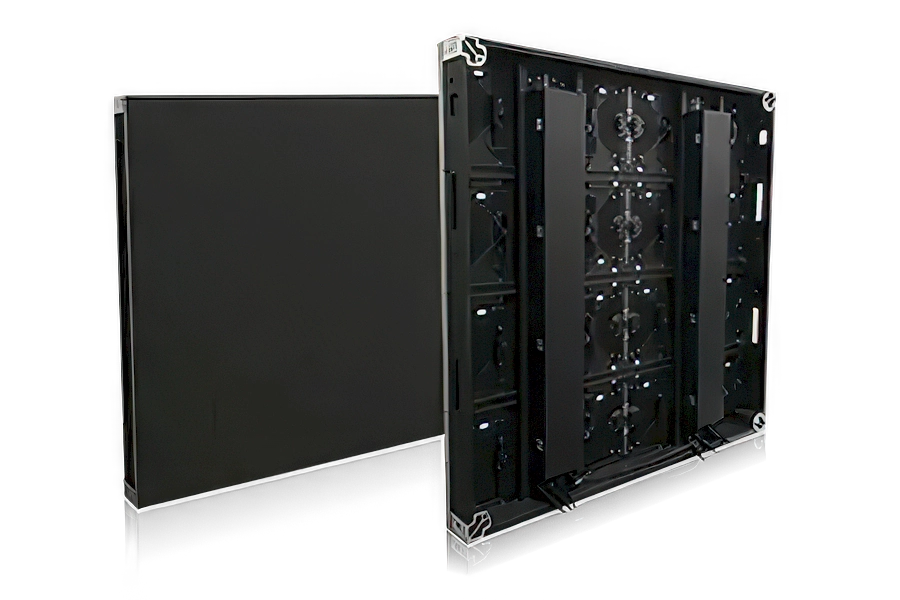

Service architecture
- Front & Rear access. You can easily remove the LED module on the front or rear side, effectively reducing the maintenance costs.
- 23-second module swap. A non-professional person can handle it easily.
- Standard mechanical tooling. No proprietary tools, no special-order spares.

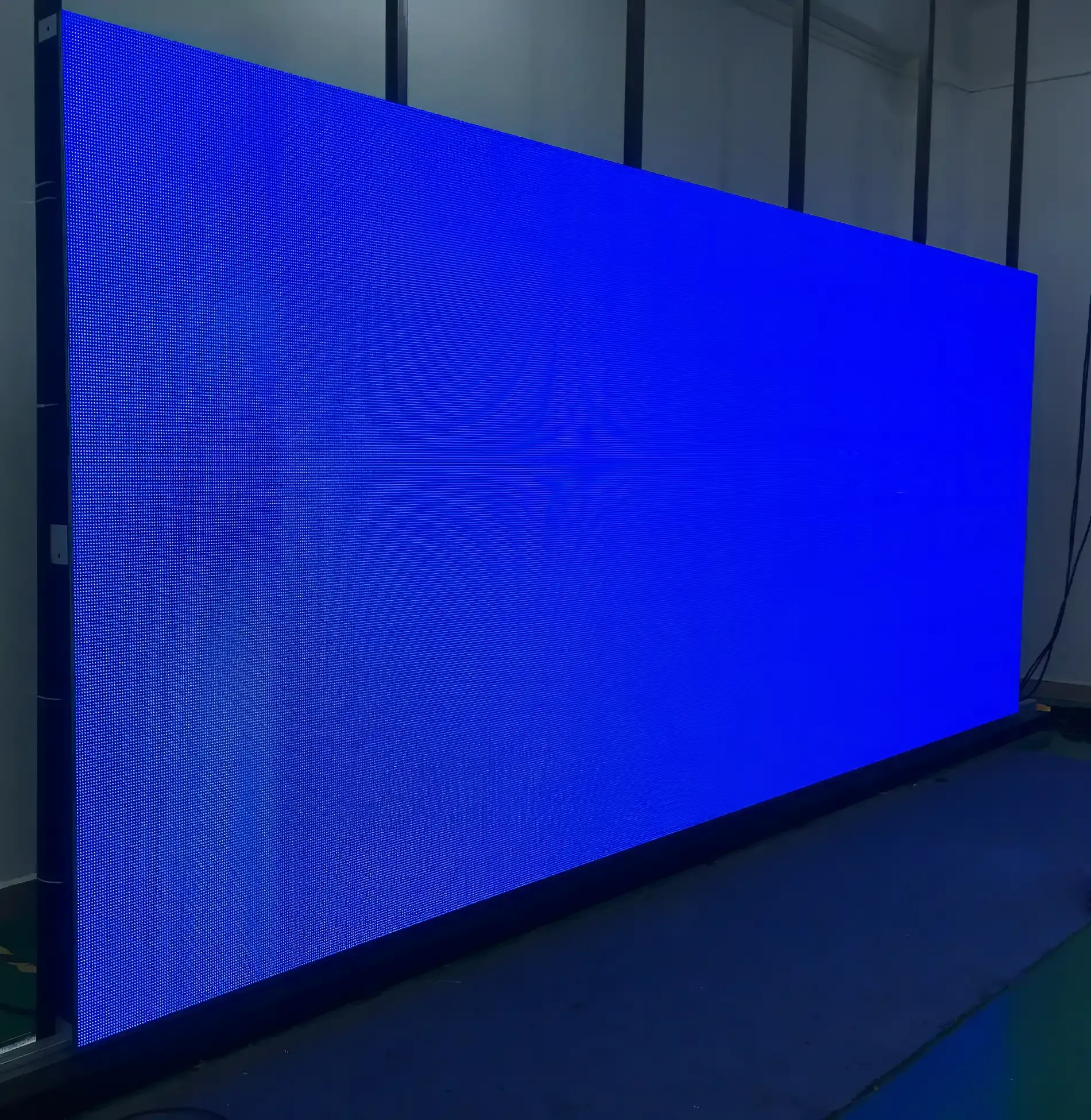

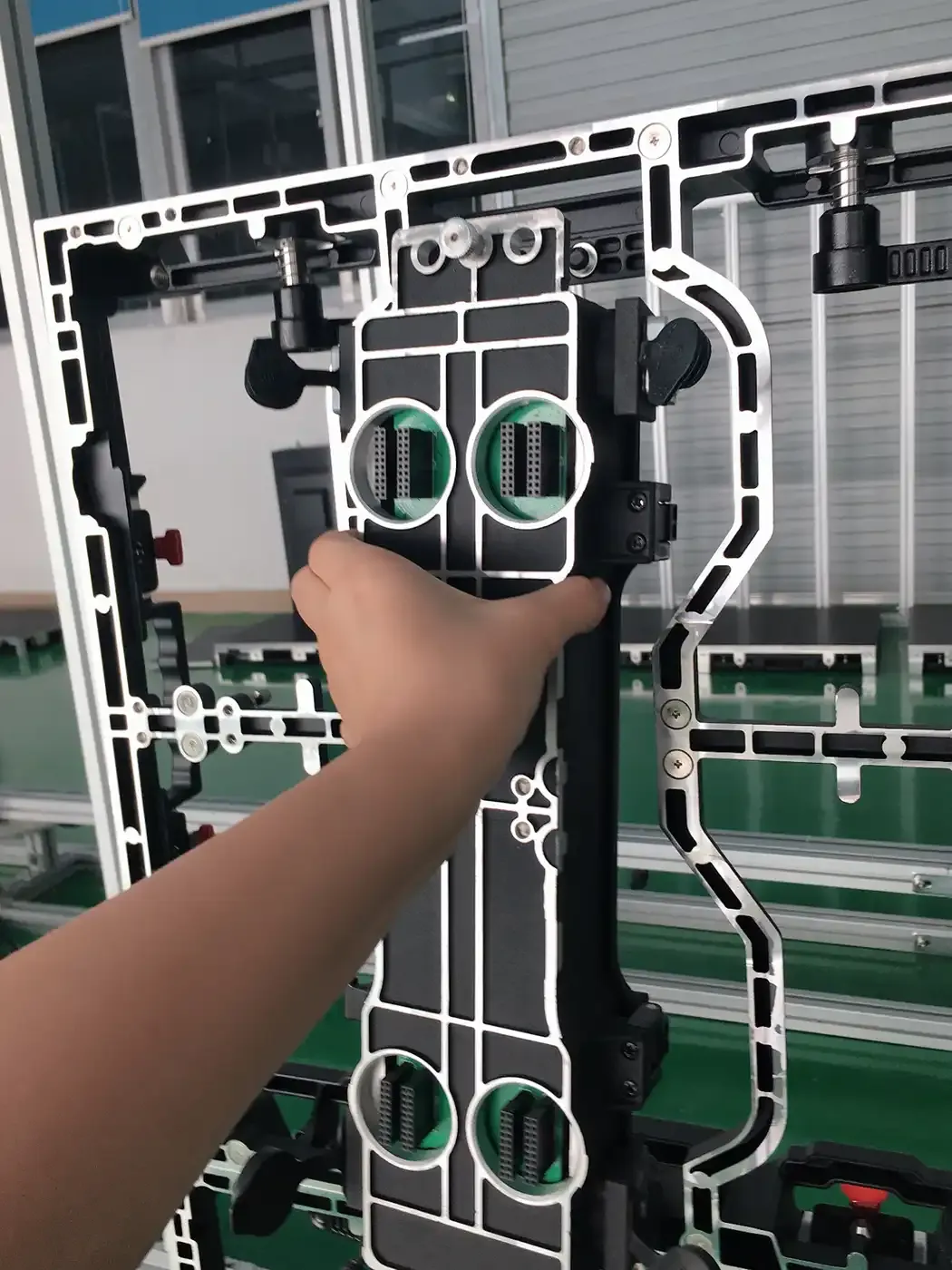

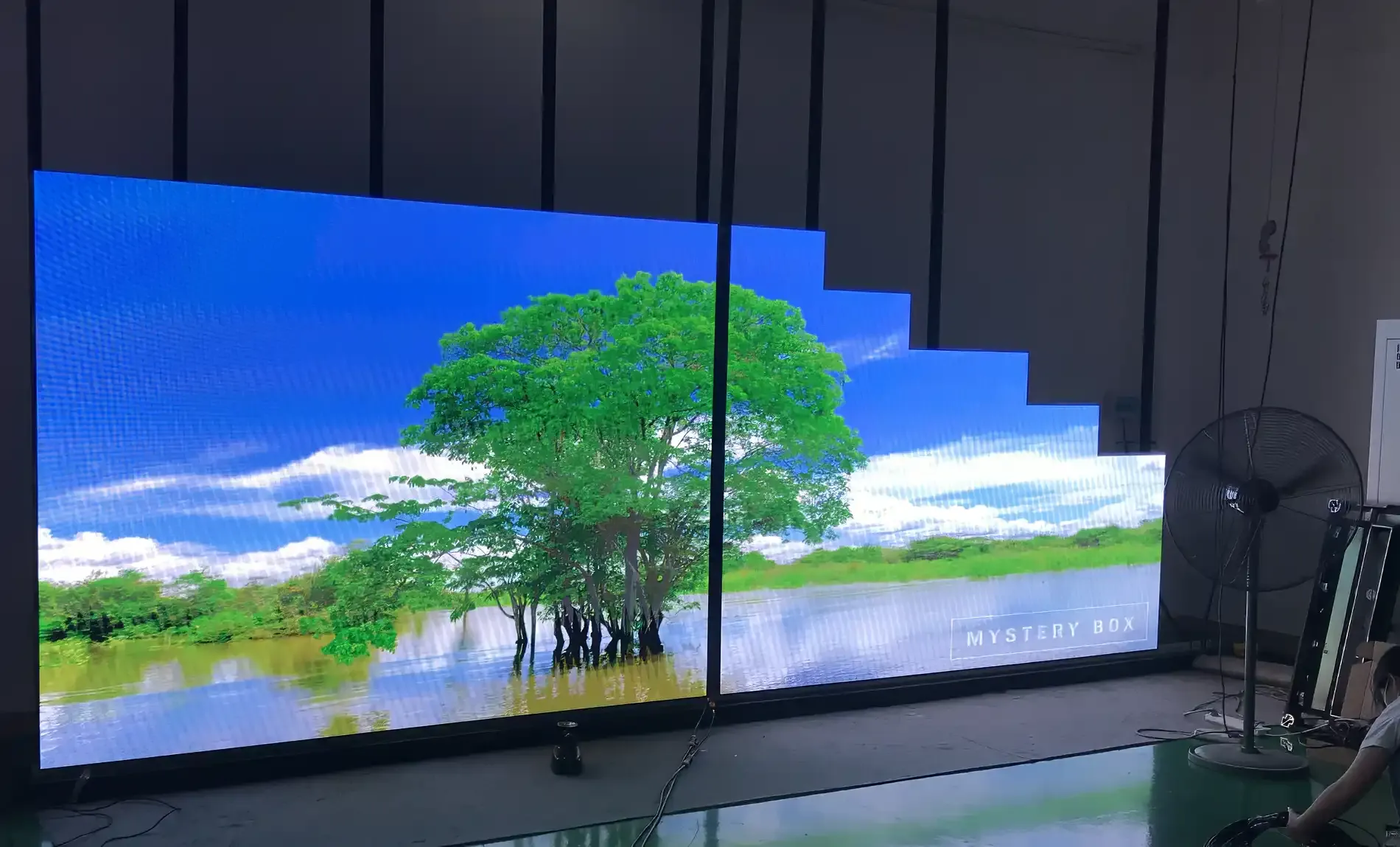

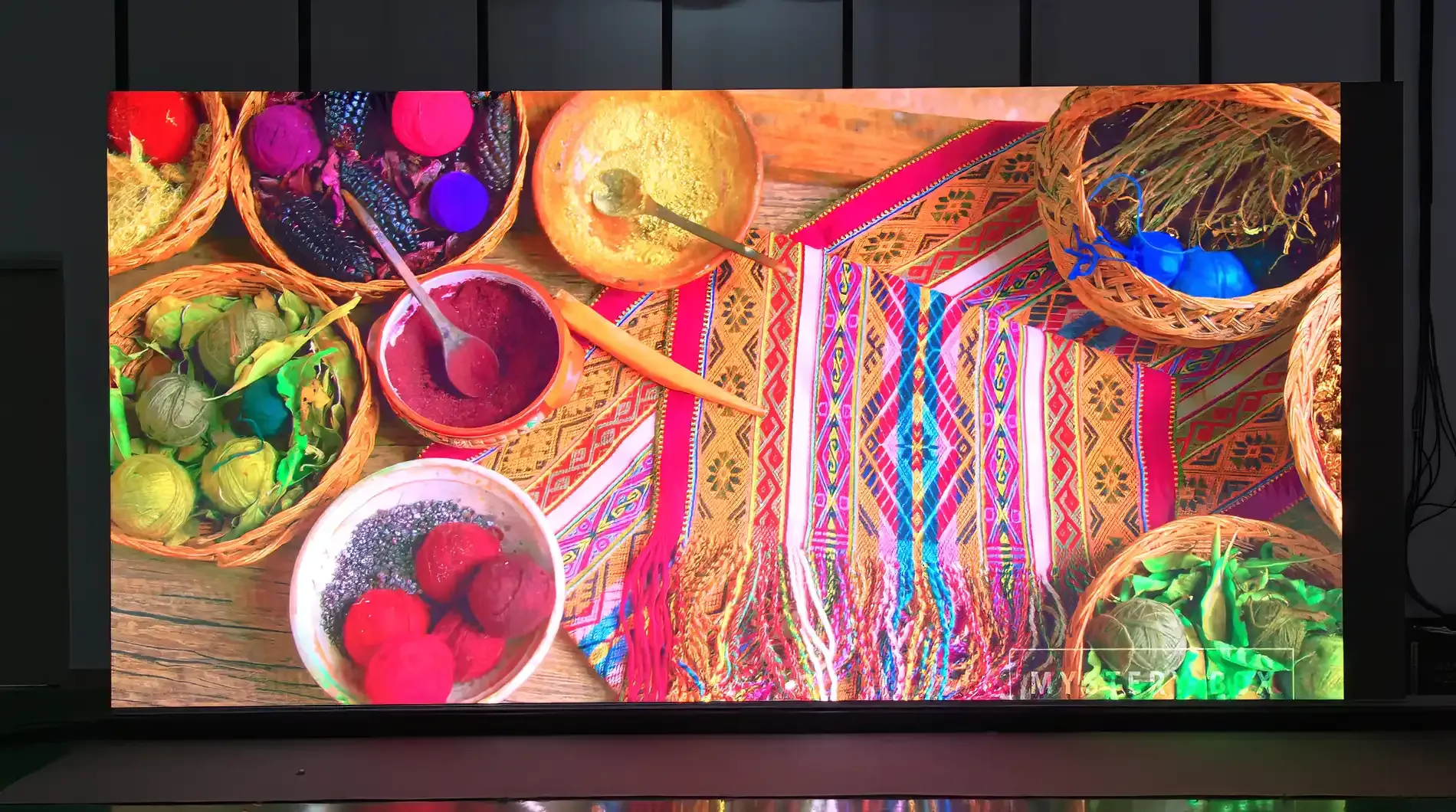

Inside pictures

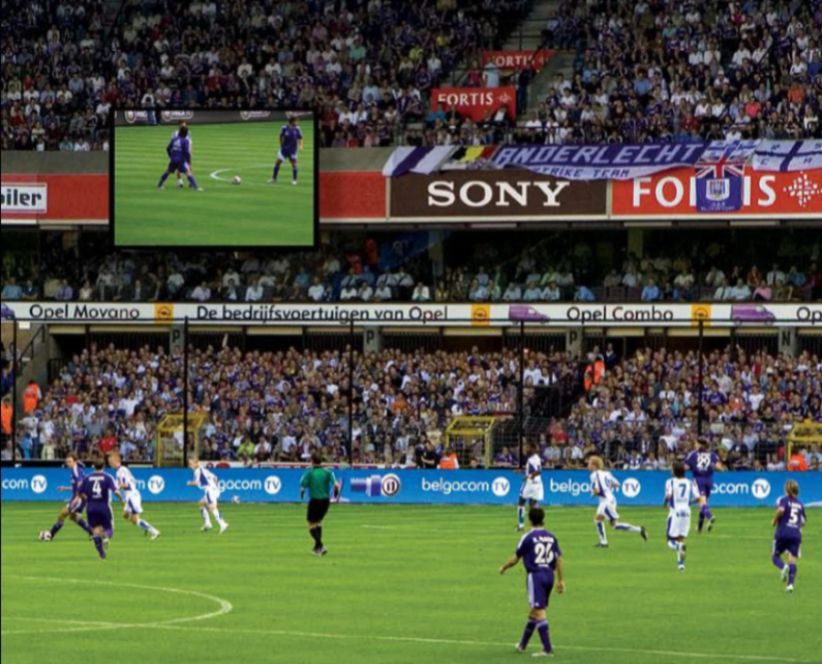

Outdoor pictures gallery
APPLICATIONS
Where an Outdoor LED Screen Earns Its Place
Make an Impression That Lasts.
More advantages of the outdoor LED Screen
A handful of cabinet-level design choices that matter more outdoors than indoors.
- Sealed module design. The LED module is sealed during assembly, not field-sealed with silicone after installation. more reliable and stable
- Cable-free board-to-board connection. The module connects directly to the receiving card via the HUB board contact without a flat cable and plugs. Flat cables easily malfunction under vibration( e.g., roadside billboards, stadium rooftop screen); eliminating them cuts out this common fault point
- EMC compliance certified. Outdoor installations are often near communication devices, transformers, and signal transmitters. Our screens pass EMC certification to meet municipal sign regulatory requirements.
- Auto-dimming brightness sensor. A panel that runs at 6,000 nits all night burns power, draws complaints, and ages the LEDs faster. The sensor tracks ambient light and pulls brightness back to the appropriate envelope automatically.
COMPARE
How the Outdoor LED Screen Range Compares With the Other Four Families
The outdoor series covers permanent open-air installations. For different briefs:
Indoor LED Screen
Retail flagships, corporate lobbies, broadcast studios, controlled-light interiors.
Explore indoor
HD Wall LED Display
Sub-2 mm pitch close-viewing — control rooms with extreme density, broadcast walls at arm's reach.
Explore HD wall
Rental LED Display
Touring, events, fast rig-and-strike — concerts, conferences, exhibitions, weddings.
Explore rentalFAQ
Outdoor LED Screen — frequently asked questions.
What does IP65 protection mean for an outdoor LED screen?
IP65 is a two-digit ingress-protection rating. The first digit "6" means the enclosure is dust-tight against fine particles. The second digit "5" means the enclosure is protected against water jets from any direction. Both the LED module and the cabinet on the ARECH outdoor LED screen series carry this rating, which makes the panel fully weather-resistant for permanent open-air installation.
How does an outdoor LED screen stay readable in direct sunlight?
Brightness up to 6,000 nits — roughly five times brighter than a standard indoor display. An on-cabinet ambient-light sensor auto-adjusts panel output through the day to keep image readability constant: full output under midday sun, dimmed output at night to prevent glare and save power.
What is front maintenance and why does it matter for an outdoor LED screen?
Front maintenance means every serviceable component — LED module, power supply, controller — lifts out from the front face of the cabinet. It matters because outdoor LED screens often install where rear access is blocked by the building, expensive to scaffold to (high facades), or physically impossible (pole-mounted units). A field engineer can swap an LED module from a cherry-picker in 23 seconds without dismantling the wall.
What standard cabinet and module sizes does the outdoor series use?
Two module ladders: 250 × 250 mm and 320 × 320 mm. Cabinets built on these footprints assemble into common large-format dimensions such as 1000 × 1000 mm and 960 × 960 mm, and into bespoke screen sizes in multiples of the module footprint.
Can the outdoor LED screen be monitored and controlled remotely?
Yes. The outdoor LED screen series integrates with content-management software that supports remote status monitoring, scheduled content delivery, and brightness adjustment. An operator can manage a network of screens spread across multiple cities from a single console.
How heavy is the outdoor LED screen per square metre?
Roughly 31 kg per square metre at 75 mm cabinet depth. The aluminium-profile cabinet construction keeps weight well below the structural threshold for typical building-facade installation, pole-mount loads, and lifting-equipment lift capacities. Full warranty terms on the warranty page.
