Ultra-fine pixel pitch with ultra-high definition
We offer a full range of pixel pitches including P0.9, P1.2, P1.5, P1.8 and P2.5 to meet all your customized requirements.
Fine Pitch HD WALL LED DISPLAY · GLOBAL DELIVERY
Fine Pitch HD LED Display 27" Best high definition display on the market
HD Wall LED Display from ARECH offers fine pitch solution with native 16:9 cabinets is the high definition display with very fine pixel pitches, nothing beats our HD LED video wall direct view LED solutions for large, and high-detail content viewed from a close distance. We offer high-resolution panels for application in settings such as a retail stores or trade show exhibits.
- Pitch
- P0.9-P2.5
- Cabinet weight
- 5 kg
- Aspect ratio
- 16:9
- Certification
- CE | FCC
Product image pending
Fine pixel pitch range
Golden ratio aspect
Lead time
Hours operating life
Overview
HD Wall LED Display 16:9 golden aspect ratio design
The Aspect ratio on ARECH Fine Pitch HD Wall LED Screen to support a 16:9 ratio is typically seen as optimal visual effect, offering boundless opportunities to create a truly immersive space. Also it is easy to capture this aspect ratio on almost all devices.
Paired with ultra-fine, precise pixel pitches, every model delivers flawless native Full HD, 4K and 8K resolution
WHY ARECH
Why ARECH for Fine Pitch HD Wall LED Display
High Clarity, high Contrast- Brilliant visuals at every pixel
SPECIFICATIONS
HD Wall series Specification
The full spec ladder for the HD Wall series. Confirm the row that fits the install, then request the PDF spec sheet for the variant.
HD Wall (16:9) series spec
Additional fine pitches available on request when the brief calls for sub-P1.2 resolution.
| Parameter | ACIDP00.9HD | ACIDP01.2HD | ACIDP01.5HD | ACIDP01.8HD | ACIDP02.5HD |
|---|---|---|---|---|---|
| Pixel Pitch | 0.9mm | 1.2mm | 1.5mm | 1.8mm | 2.5mm |
| LED Type | SMD | SMD | SMD | SMD | SMD |
| Module Dimension WxH | 300x168.75mm | 300x168.75mm | 300x168.75mm | 300x168.75mm | 300x168.75mm |
| Cabinet Dimension WxH | 600x337.5mm | 600x337.5mm | 600x337.5mm | 600x337.5mm | 600x337.5mm |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Cabinet Weight | 5kg | 5kg | 5kg | 5kg | 5kg |
| Service Type | Front | Front | Front | Front | Front |
| Brightness | 500-600nits | 500-600nits | 500-600nits | 500-600nits | 500-600nits |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Hor. Viewing Angle | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) |
| Vert. Viewing Angle | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) |
| Power Consumption | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) |
| Refresh Rate | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| IP Rating | IP30 | IP30 | IP30 | IP30 | IP30 |
| Operating Power Voltage | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz |
| Operating Temperature | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C |
| Operating Humidity | -10% to 90% | -10% to 90% | -10% to 90% | -10% to 90% | -10% to 90% |
| Standard | CE / FCC | CE / FCC | CE / FCC | CE / FCC | CE / FCC |
| Warranty | 2 years | 2 years | 2 years | 2 years | 2 years |
HD Wall (4:3) series spec
| Parameter | ACIDP01.2GM | ACIDP01.5GM | ACIDP01.6GM | ACIDP01.8GM | ACIDP02.0GM | ACIDP02.5GM |
|---|---|---|---|---|---|---|
| Pixel Pitch | 1.2mm | 1.5mm | 1.6mm | 1.8mm | 2.0mm | 2.5mm |
| LED Type | SMD | SMD | SMD | SMD | SMD | SMD |
| Module Dimension WxH | 320x160mm | 320x160mm | 320x160mm | 320x160mm | 320x160mm | 320x160mm |
| Cabinet Dimension WxH | 640x480mm | 640x480mm | 640x480mm | 640x480mm | 640x480mm | 640x480mm |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Cabinet Weight | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Service Type | Front | Front | Front | Front | Front | Front |
| Brightness | 500-600nits | 500-600nits | 500-600nits | 500-600nits | 500-600nits | 500-600nits |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Hor. Viewing Angle | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) |
| Vert. Viewing Angle | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) |
| Power Consumption | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) |
| Refresh Rate | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| IP Rating | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 |
| Operating Power Voltage | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz |
| Operating Temperature | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C |
| Operating Humidity | -10% to 90% | -10% to 90% | -10% to 90% | -10% to 90% | -10% to 90% | -10% to 90% |
| Standard | CE / FCC | CE / FCC | CE / FCC | CE / FCC | CE / FCC | CE / FCC |
| Warranty | 2 years | 2 years | 2 years | 2 years | 2 years | 2 years |
Other Advantages of Fine pitch HD wall LED Display
- Image quality: Precision Beyond Resolution
- High quality visualExperinece

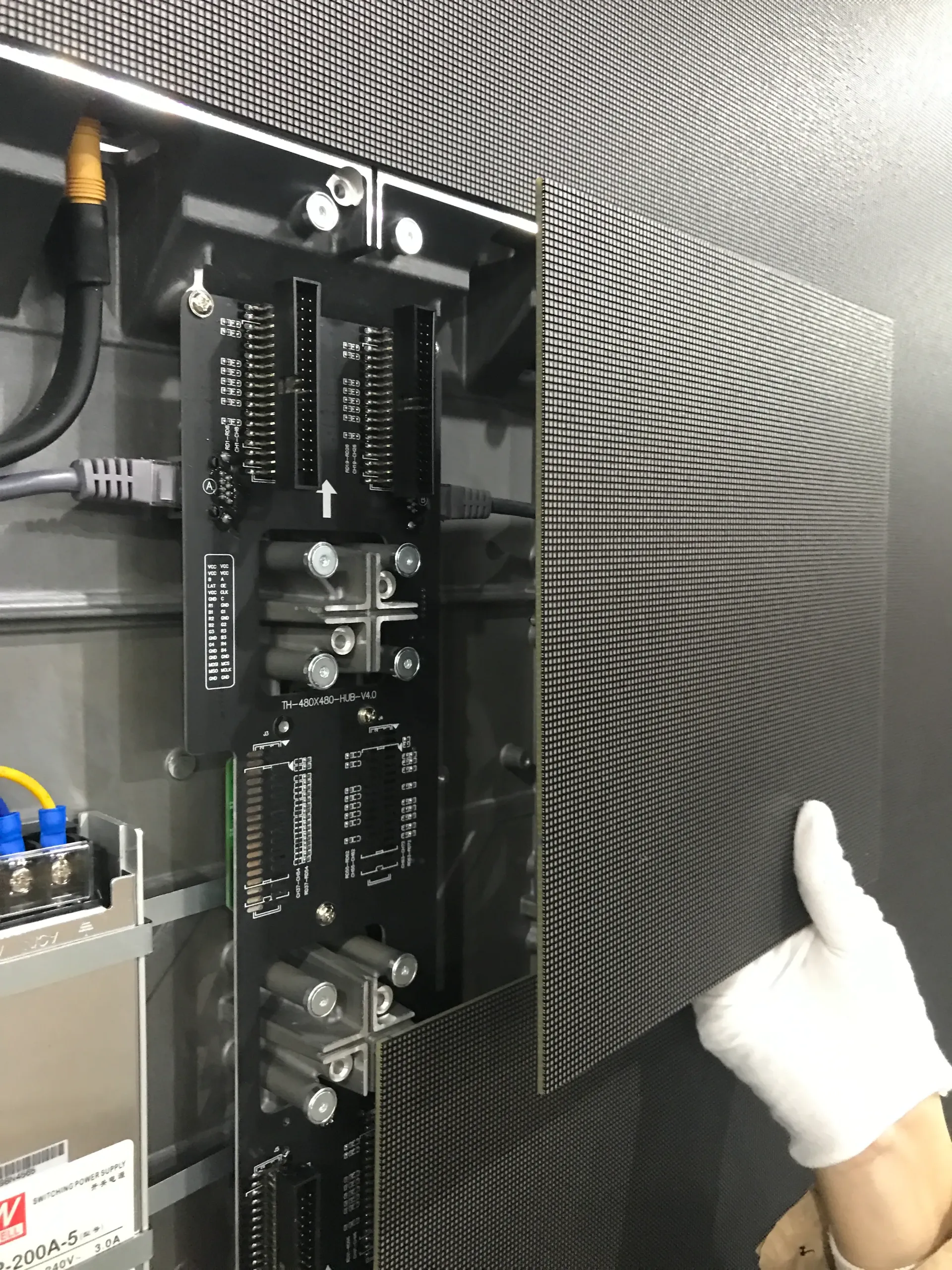

- Fully front maintenace: Magnetic-attached modules eliminate rear access passages, saving up to 60% of structural space
- Modular standaridization: Unified cabinet dimension ensure spare part interchangeability and cost effective upgrades
- Friendly adjustbale brightness
- COB Optional
Pictures gallery

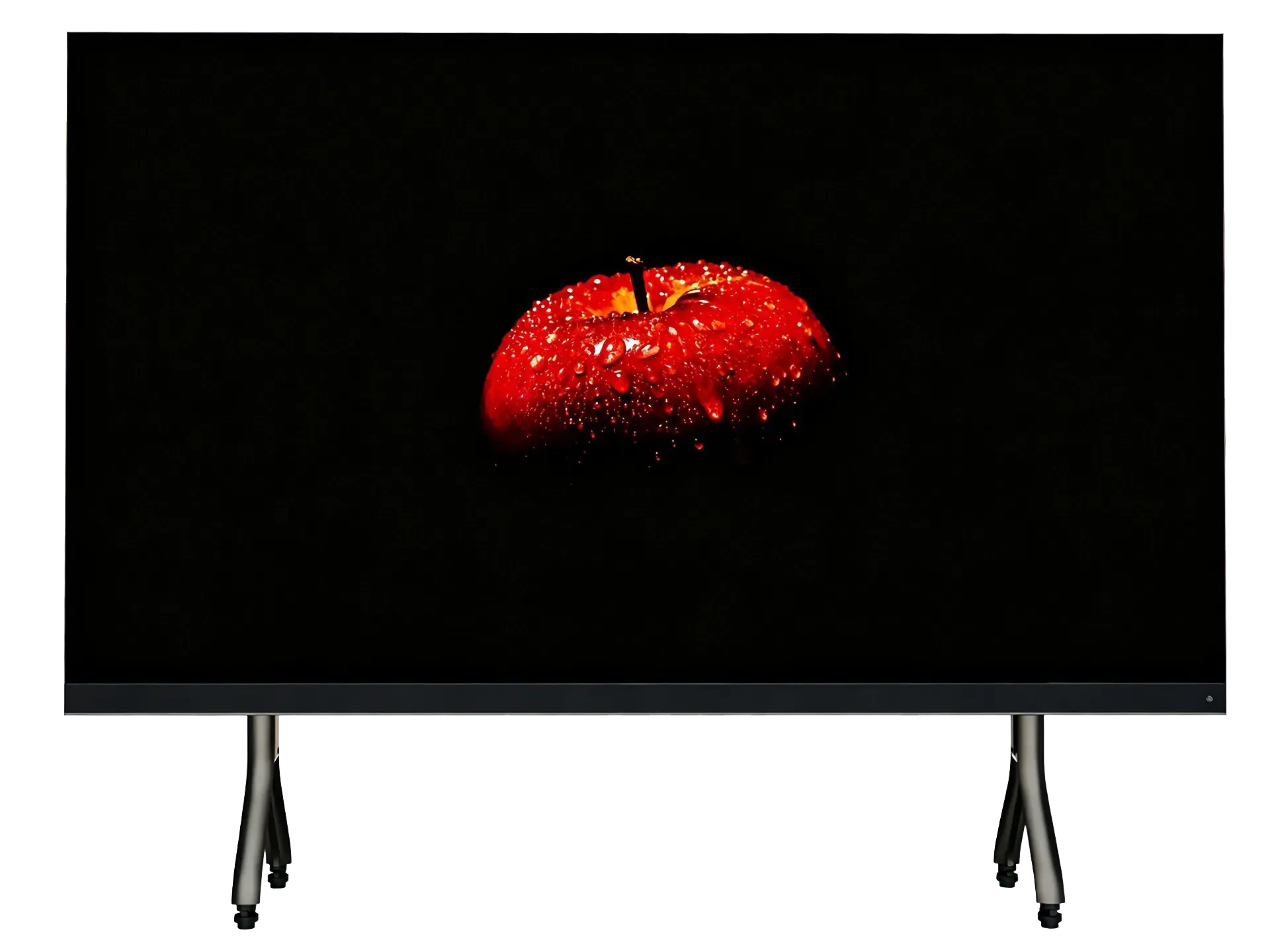

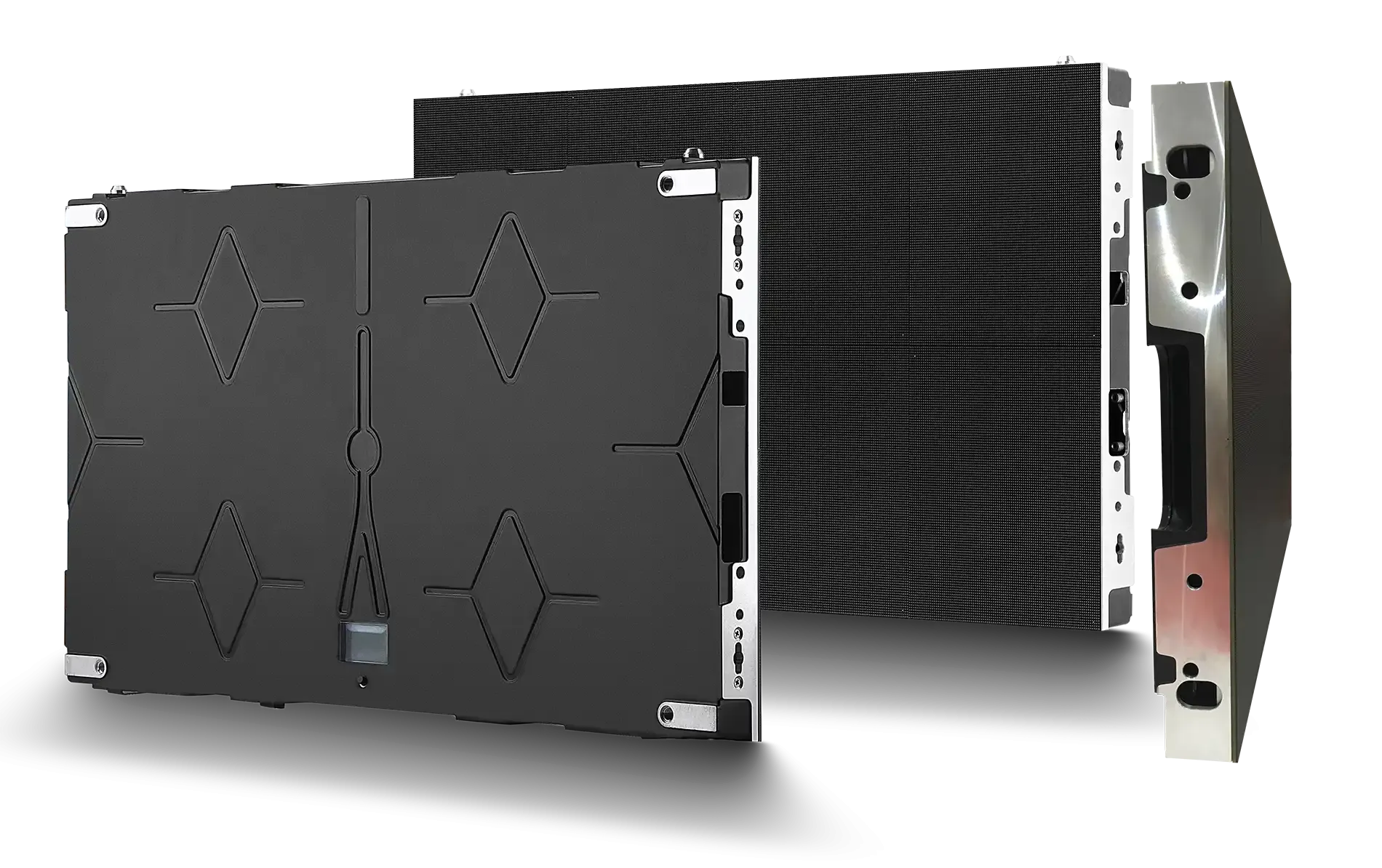

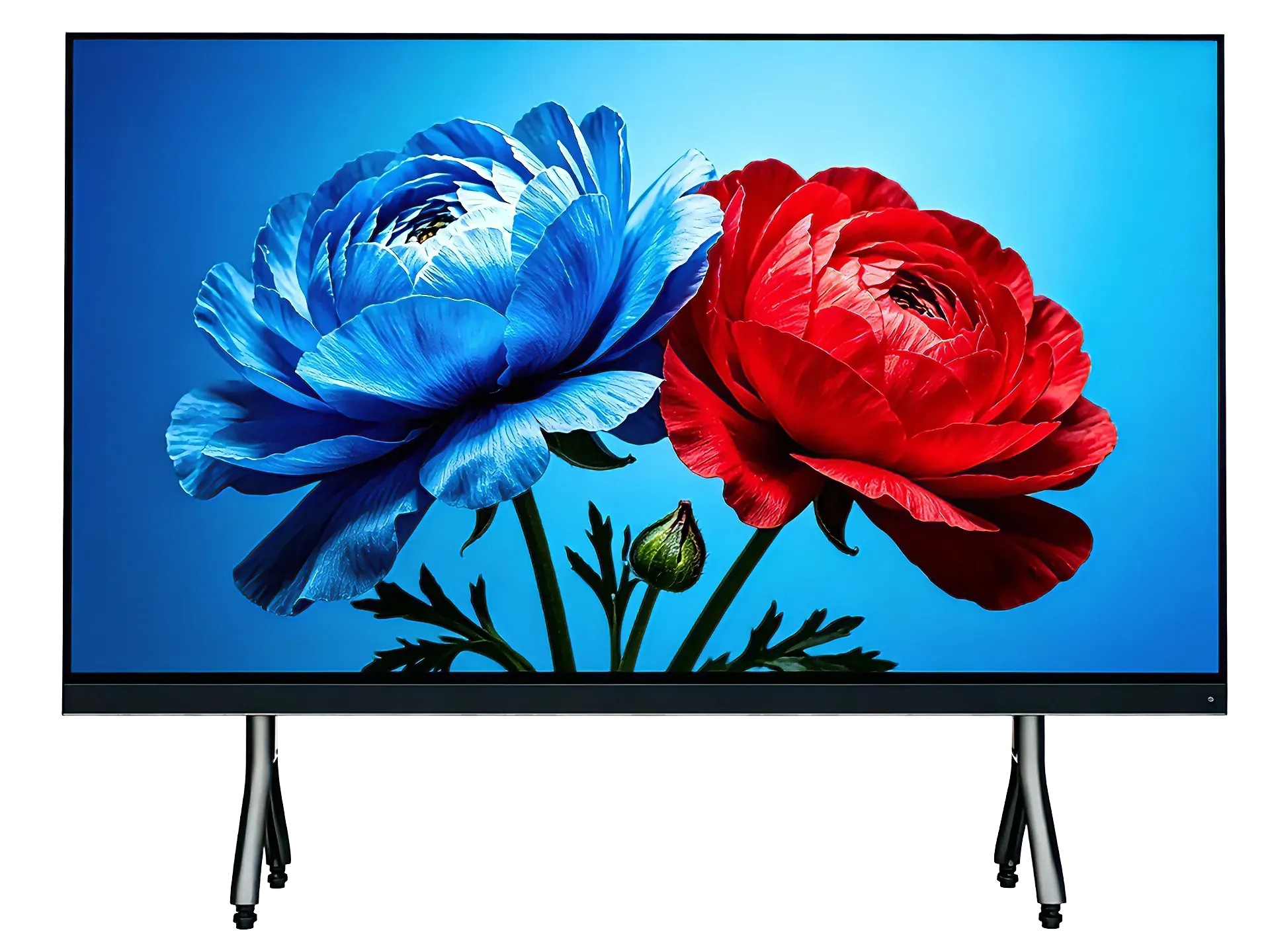

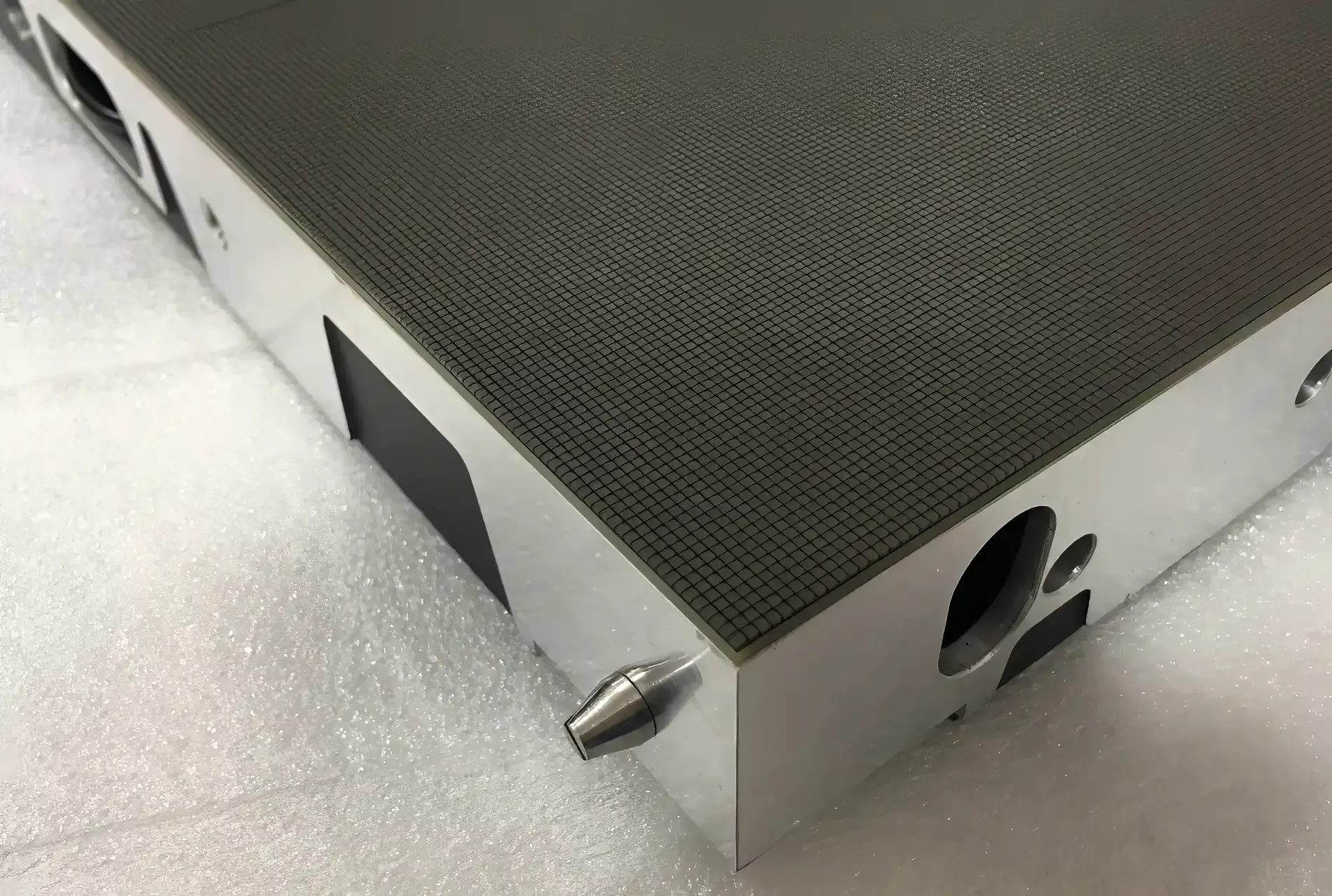

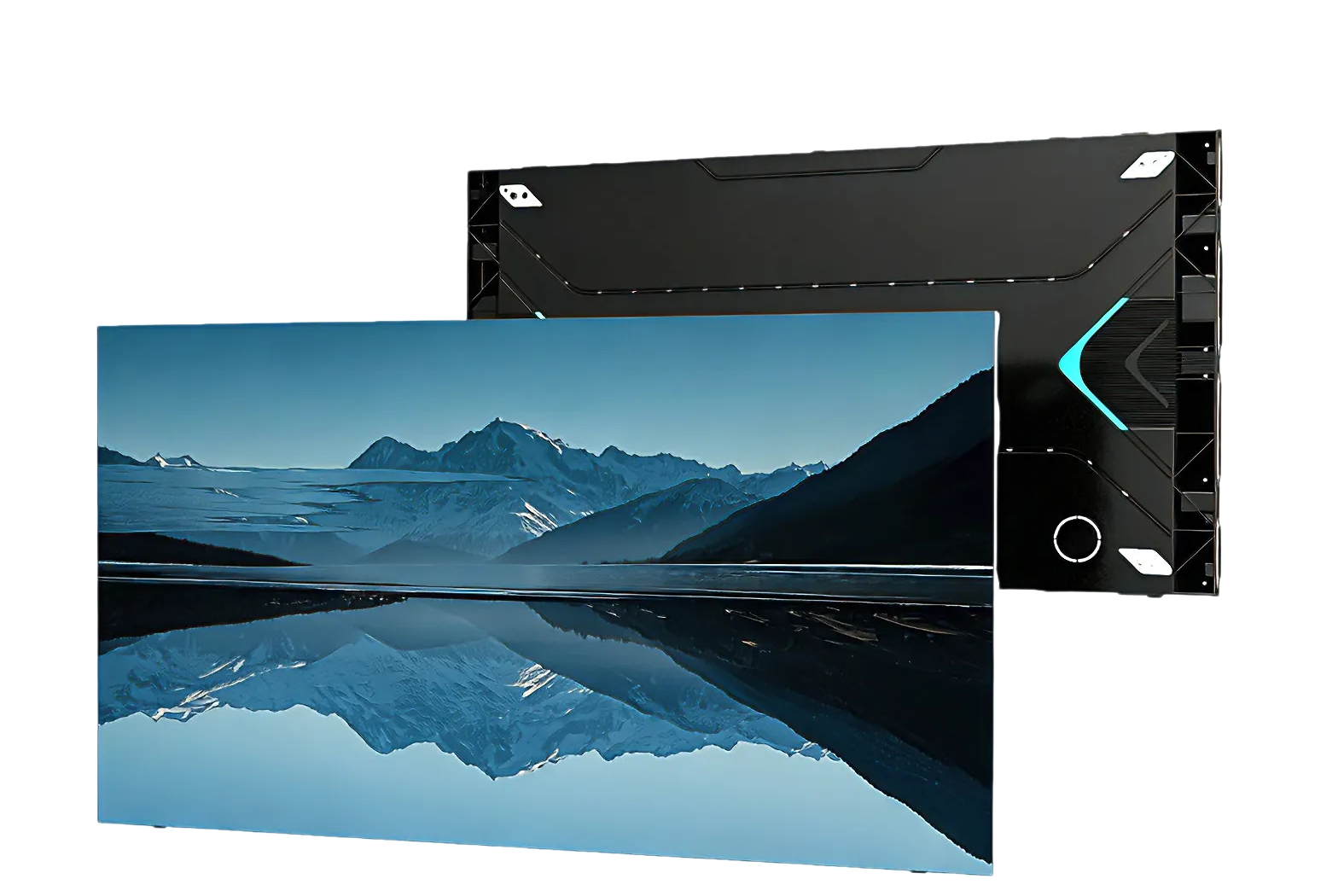

HD Wall LED Display screen Pictures
APPLICATIONS
Where Fine Pitch HD Wall Displays Prove Their Worth
Engineering the perfect canvas for every space
Where the Fine Pitch Actually Pays Off
A short technical note on when sub-2 mm pitch is worth the spend versus when a coarser pitch from the indoor range is the right call.
- Spec sub-2 mm when: the closest viewer is inside 2 m, content includes fine typography or dense dashboards, the wall lives in a finished interior that has invested in the rest of the build, broadcast or video conferencing requires near-pixel-perfect close-up shots, or the install is read at less than the rule-of-thumb pixel-pitch-times-viewing-distance threshold.
- Stay with P2 to P4 when: the closest viewer is past 2.5 m, content is large-format video / hero imagery / loop-driven retail campaigns, room is a high-ceiling atrium or open-plan lobby, or the install needs to span more than 20 m² where cost per square metre matters more than sub-2 mm density.
For the second category, the Indoor LED Screen range covers the brief at lower cost per square metre. For the first category, the HD Wall series is the only correct answer in the catalogue.
COMPARE
How the HD Wall LED Display Range Compares With the Other Four Families
The HD Wall series owns the fine-pitch close-viewing brief. For other briefs:
Indoor LED Screen
Standard indoor close-to-mid-range viewing — lobby walls, retail feature walls, atrium signage.
Explore indoor
Outdoor LED Screen
Open-air weatherproof installation — billboards, building facades, public-plaza screens.
Explore outdoor
Flexible LED Screen
Curved or sculptural surfaces — column wraps, dome ceilings, free-form features.
Explore flexible
Rental LED Display
Touring or event installation — concerts, festivals, expo booths, conference backdrops.
Explore rentalFAQ
HD Wall LED Display — frequently asked questions.
What is the difference between an HD Wall LED display and a standard LED video wall?
Pixel pitch and intended viewing distance. An HD Wall LED display uses a sub-2 mm fine pitch (P1.2 / P1.5 / P1.9), which keeps individual pixels invisible at close range and lets the wall hold image quality at arm's-length viewing. A standard indoor LED video wall typically uses pitches of P2.5 and coarser — fine for lobby and atrium viewing distances, but visibly pixelated at the desk-to-wall distance of a control room or boardroom.
What does "front maintenance" mean and why does it matter for an HD Wall LED display?
Front maintenance means LED modules, power supplies, and receiving cards all lift out from the front face of the cabinet. It matters because HD Wall installations are usually built flush into a finished wall, recessed inside joinery, or backed by structural elements that block rear access. With front service, a damaged module is replaced from the front without dismantling the surrounding architecture.
What is the typical lead time for an ARECH HD Wall LED display order?
Standard configurations ship within 15 to 25 working days after order confirmation. Large-volume or highly customised projects carry a project-specific timeline confirmed at the quote stage.
Can I see an HD Wall LED display before ordering?
Yes. Demonstration paths include a recorded video walkthrough, references to installed sites the customer can visit or video-tour, and a single-cabinet sample shipped to the project location for hands-on evaluation before placing the production order.
What warranty and support cover an HD Wall LED display?
Factory warranty across the series covers materials and workmanship. An additional essential-care service plan up to two years provides expert support, calibration check-ins, and maintenance options. Series-specific terms on the warranty page.
How heavy is an HD Wall LED display cabinet?
Each HD Wall cabinet weighs 4.5 kg. The aluminium-profile construction keeps weight low enough to mount on partition walls and on host walls with lower load-bearing capacity, while staying rigid enough to maintain bezel-free splicing across multi-cabinet runs.
SPECIFY
Specify Your HD Wall LED Display
Send the venue dimensions, the closest viewer distance, the content profile (presentation / video / dashboards), the ambient-light plan, and the install context (flush / recessed / freestanding). Reply lands by the next business day: a pitch recommendation, a cabinet count, an itemised price including freight to the destination port, and a production slot you can book against.
